MODEL: TGZ08/TGZ10/TGZ12/TGZ14/TGZ16/TGZ18/TGZ20
Trailer mounted boom lift aerial working platform, made of manganese steel, precise and sensitive, can cross obstacles, fast erection speed, automatic hydraulic support foot; the height of each foot can be adjusted according to the terrain to reach the platform level; it can cross obstacles to work; It is easy to transport and can be towed directly and quickly. It is widely used in installation, maintenance and climbing operations in such industries as municipal administration, electricity, street lights, advertising, communications, photography gardens, transportation, docks, airports and ports, and large industrial and mining enterprises. It is suitable for various rugged terrains in the field, and has a wide range of space operations. It is mainly used for construction, bridge construction, shipbuilding, airports, mines, ports and docks, construction of communication and power facilities, and outdoor advertising.
MODEL: GTWY05/GTWY08 /GTWY10
The courtyard-type aluminum alloy aerial working platform is divided into 5, 8, and 10 meters according to the lifting height, and the series products have a load of 130/150 kg. Use high-strength and high-quality aluminum alloy material, the thickened chassis of Q235 steel plate, prevents bumps, and can be used with forklifts for convenient and fast transportation. The equipment is equipped with standard down control and remote control methods to facilitate the operation of the equipment by high-altitude operators, saving time and efficiency. This equipment is widely used in factories, hotels, restaurants, stations, airports, theaters, exhibition halls and other places. It can pass through-like halls and elevators, so it is extremely convenient to use.
Self-propelled aluminum alloy aerial working platform (single mast/double mast)
MODEL: GTWY06-1/GTWY08-2
Self-propelled aluminum alloy aerial working platform. The lifting heights of self-propelled aluminum alloy aerial working platform range from 6 meters to 8 meters. The load capacity of it range from 150kg to 300kg.
Adopts high-strength and high-quality aluminum alloy materials. The Q235 steel thickened chassis can prevent bumps. Our product can cooperate with forklift to move conveniently and quickly. The basic control ways lower-control and remote-control,can save aerial workers’ time and improve their efficiency to operate equipment.
This equipment are widely used in factory, hotels, restaurants, stations, airports, theaters, exhibition halls and etc. It can walk across normal door and elevators and be very convenient to use.
The products of Aluminum alloy aerial working platform can be divided into three types–single mast, double mast and three mast. The lifting heights of it ranges from 4 meters to 16 meters. The load capacity of it ranges from 130kg to 300kg.
Adopts high-strength and high-quality aluminum alloy materials. The Q235 steel thickened chassis can prevent bumps. Our product can cooperate with forklift to move conveniently and quickly. The basic control ways, lower-control and remote-control, can save aerial workers’ time and improve their efficiency to operate the equipment.
This equipment are widely used in factory, hotels, restaurants, stations, airports, theaters, exhibition halls and etc. It can walk across normal door and elevators and be very convenient to use.
Product Details:
| Brand | EASY MOVE |
| Capacity | 0-500 KG |
| Model | GTJZ SERIES |
| Usage/Application | USED FOR AIRPORT,STATION,SUPPER MART,STADIUM AND WORK SHOP. |
| Material | MS |
| Working Height | 30 feet |
| Color | Yellow |
| Is It Customized | Customized |
Specifications:
• Capacity: 500-5000 Kg
• AC power packs with lifting speeds: 1 m/min-4 m/min
• Power: AC, DC Power
Request
Callback
Callback
Additional Information:
- Production Capacity: 0-500 KG
- Delivery Time: In a week
PRODUCTDESCRIPTION
| Model | Platform size(mm) | Load capacity(kg) | Max. Platform Height(m) | Max. Working Height(m) | Overall dimensions(mm) | Machine weight(kg) |
| QYCY0.5-4 | 2100*830 | 500 | 4 | 6 | 2250*950*1100 | 800 |
| QYCY0.5-6 | 2100*830 | 500 | 6 | 8 | 2250*950*1200 | 880 |
| QYCY0.5-7 | 2100*830 | 500 | 6.8 | 8.8 | 2250*950*1200 | 970 |
| QYCY0.5-8 | 2100*930 | 500 | 8 | 10 | 2250*1060*1380 | 1050 |
| QYCY0.5-9 | 2100*930 | 500 | 9 | 11 | 2250*1060*1500 | 1165 |
| QYCY0.5-10 | 2100*1230 | 500 | 10 | 12 | 2250*1350*1530 | 1360 |
| QYCY0.3-11 | 2100*1230 | 300 | 11 | 13 | 2250*1350*1650 | 1400 |
| QYCY0.5-12 | 2550*1530 | 500 | 12 | 14 | 2796*1670*1750 | 2260 |
| QYCY0.5-14 | 2812*1530 | 500 | 14 | 16 | 3067*1730*1810 | 2486 |
| QYCY0.3-16 | 2812*1600 | 300 | 16 | 18 | 3067*1810*2080 | 3063 |
| QYCY0.3-18 | 3070*1600 | 300 | 18 | 20 | 3321*1810*2080 | 3900 |
PARAMETERS
PRODUCT DESCRIPTION
Mobile scissor lift has wide space platform and higher load capacity makes work range more larger and suitable for many people to work at the same time. Its platform is from 4m-26m, and load capacity is from 500-2000kg. This scissor lift makes aerial working more efficient and safer. Mainly used for station, dock, bridge, hall, workshop indoor and outdoor machinery installation, equipment repair, building maintenance.
PRODUCT CUSTOMIZATION
We can customize products according to your requirements to make products more in line with your needs. Like color, brand, logo, nameplate, power(AC,DC,Diesel), voltage, machine configuration(assisted walking, extended working platform, solid tires, pull-out type outriggers, hand-press pump, remote control, alarm light, overload alarm, incline alarm)
PRODUCT DETAILS
Normal lift height：4-18 meters，customized size from 20 meters to 26 meters
Normal power：Alternating Current 220V/380V. It can be equipped with DC and diesel power or both. We also can customize for you according to your local voltage.
Lifting speed：4-6m/min.
Platform load：300-2000kg.
Extendable platform：0-900mm，load 113kg.
Guardrail：removable，height 1.1meter
Material：Q235 Carbon Steel.
Shaft Pin：butter nozzle for grease maintenance
Tubing groove: prevents oil tubing winding
Tires: normal pneumatic tires, can be customized solid tires.
Mobile scissor lift(front)
Mobile scissor lift(side)
Bottom control
Operate the lifting of machine, also equip with emergency stop button
Upper control
Operate the lifting of machine, also equip with emergency stop button
Battery composition
Using high-quality battery brand, more stable and safe
Scissor part
Q235 carbon steel, strong and stable
Working platform
Wide size and high loading capacity, meet multi-people to work at same time
Hydraulic power unit
Small volume, compact structure, high efficiency, reliable performance
Outrigger fixing wrench
Use it to place and fix the outriggers
Production flow chart
Adopt intelligent and precise processing equipment to ensure the quality of the equipment
Product packaging and delivery diagram
Equipment packaging in strict accordance with export standards.
Finished product warehouse
After strict multi-layer inspection, the equipment enters the finished product warehouse for delivery preparation
Finished product warehouse
After strict multi-layer inspection, the equipment enters the finished product warehouse for delivery preparation
PRODUCTDESCRIPTION
| Parameters | QYLD0.23-06 | QYLD0.32-08 | QYLD0.32-10 | QYLD0.32-12 |
| Max. lifting height | 6m | 8m | 10m | 12m |
| Max. working height | 7.05m | 9.05m | 11.05m | 13.05m |
| Max. loading capacity | 230kg | 320kg | 320kg | 320kg |
| Loading capacity of extension platform | 113kg | 113kg | 113kg | 113kg |
| Platform size | 1.669×0.745m | 2.271×1.11m | 2.271×1.11m | 2.271×1.11m |
| Platform extension size | 0.9m | 0.9m | 0.9m | 0.9m |
| Min. ground clearance(Close/Open) | 0 | 0 | 0 | 0 |
| Wheelbase | N/A | N/A | N/A | N/A |
| Min. turning radius（Outer wheel / Inner wheel） | 0 | 0 | 0 | 0 |
| Lifting motor | 48V/1.6KW | 48V/4.5KW | 48V/4.5KW | 48V/4.5KW |
| Ground speed(Close) | 1.8Km/h | 1.8Km/h | 1.8Km/h | 1.8Km/h |
| Ground speed(Open) | 0 | 0 | 0 | 0 |
| Lifting speed | 84/38sec | 84/38sec | 84/38sec | 84/38sec |
| Battery | 4×12V | 8×12V | 8×12V | 8×12V |
| Max. gradeability | 30% | 30% | 30% | 30% |
| Max. allowable working angle | 1.5°-3° | 1.5°-3° | 1.5°-3° | 1.5°-3° |
| Overall size(Folding guardrail) | 1.97×1.21×1.738m | 2.528×1.39×1.91m | 2.528×1.39×2.41m | 2.731×1.661×2.164m |
| Overall size(Unfolded guardrail) | 1.97×1.21×2.018m | 2.528×1.39×2.44m | 2.528×1.39×2.571m | 2.731×1.661×2.694m |
| Overall weight | 1620kg | 3150kg | 3200kg | 3700kg |
PARAMETERS
PRODUCT DESCRIPTION
Self propelled Crawler scissor lifts can work without being limited by the road conditions. It covers 6m to 12m height. This kind of scissor lift is perfectly suitable for bad road conditions, such as muddy, snowy, sandy road. With stable and secure structure, it is widely used for the wild jungle,the prairie, the field and etc.
PRODUCT CUSTOMIZATION
We can customize products according to your requirements to make products more in line with your needs. Like color, brand, logo, nameplate and so on.
PRODUCT DETAILS
Self propelled crawler scissor lift uses whole electrophoresis. The shaft pin is maintenance-free salt bath nitriding treatment. The scissor lift equips with protective system, includes overload protection, pit protection, inclined protection, emergency descent system,emergency stop button and secondary descent system.It uses the high-quality crawler brand, ensure the long using time and running stability. Also can equip with one-key leveling to ensure that the equipment can work on a horizontal surface
Self propelled crawler scissor lift(front)
Self propelled crawler scissor lift(side)
Bottom control
Including main switch, emergency descent button, emergency descent rope, upper&bottom control switch button, and lifting button
PCU control handle
Control the lifting and walking of the equipment, the operation is simple and convenient
Hydraulic controller
High-quality hydraulic components are used to improve the stability of the equipment
Extended working platform
The extended working platform will increase the operating range
Ladder
The perforated plate is used to improve the anti-skid ability of the ladder
Track
Strong and durable, good stability and wear resistance, long using time
Scissor part
High-strength manganese steel material, surface electrophoresis treatment, strong anti-rust ability
Production flow chart
Adopt intelligent and precise processing equipment to ensure the quality of the equipment
Product packaging and delivery diagram
Equipment packaging in strict accordance with export standards
Finished product warehouse
After strict multi-layer inspection, the equipment enters the finished product warehouse for delivery preparation
Finished product warehouse
After strict multi-layer inspection, the equipment enters the finished product warehouse for delivery preparation.
PRODUCTDESCRIPTION
| Model | Platform Size（m） | Overall dimensions(mm) | Max. Platform Height(m) | Max. Working Height(m) | Power（Kw/HP） | Load capacity(kg) | Max. Working Distance(m) | Weight(kg) |
| QYBZ-19J | 1.83*0.76 | 9.45*2.28*2.54 | 19 | 21 | 36.4/48.8 | 250 | 14.5 | 10237 |
| QYBZ-20J | 1.83*0.76 | 9.55*2.28*2.64 | 20 | 22 | 36.4/48.8 | 250 | 15.5 | 10550 |
| QYBZ-22J | 2.44*0.91 | 11.1*2.49*2.81 | 22 | 24 | 36.4/48.8 | 250 | 18.8 | 12022 |
| QYBZ-24J | 2.44*0.91 | 11.8*2.49*2.98 | 24 | 26 | 36.4/48.8 | 250 | 19.8 | 13730 |
| QYBZ-26J | 2.44*0.91 | 12*2.49*2.98 | 26 | 28 | 55.4/74.3 | 250 | 20.5 | 15850 |
| QYBZ-28J | 2.44*0.91 | 12.5*2.49*3.08 | 28 | 30 | 55.4/74.3 | 250 | 21.3 | 17050 |
| QYBZ-30J | 2.44*0.91 | 13.06*2.49*3.08 | 30 | 32 | 55.4/74.3 | 250 | 22.6 | 18890 |
PARAMETERS
PRODUCT DESCRIPTION

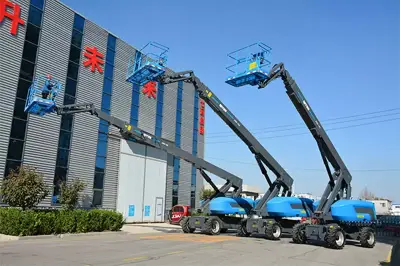

Self propelled telescopic boom lift has a platform height of 20-30 meters, a carrying capacity of 250kg, and a climbing capacity of 45%. It has a large horizontal ductility, a wide operating range and high efficiency. Self propelled telescopic boom lift provides users with a safe aerial work platform to meet the needs of challenging working conditions. Widely used in large steel, construction engineering, shipbuilding industry, curtain wall engineering, petrochemical and other industries.
PRODUCT CUSTOMIZATION
We can customize products according to your requirements to make products more in line with your needs. Like color, brand, logo, nameplate and so on.
PRODUCT DETAILS
Simple operation, high stability, no impact and no shaking;
Adopt intelligent visualization, high-brightness large screen, display parameter calibration, operating parameters, display machine information, fault alarm and fault diagnosis system;
The power of the boom lift is strong, and well-known engines are used to provide strong power for the equipment;
The unique four-wheel traction system provides it with strong traction, making its climbing ability up to 45%;

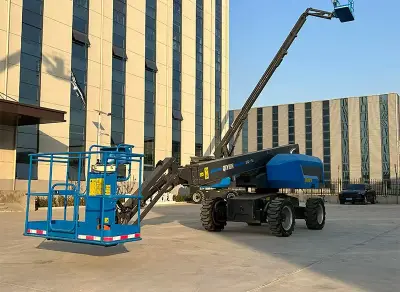

Self propelled telescopic boom lift(front)

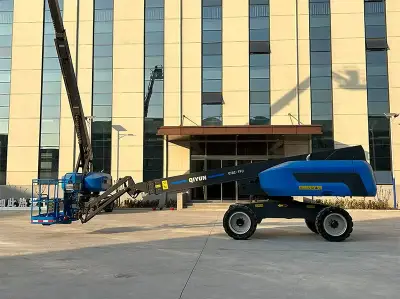

Self propelled telescopic boom lift(side)

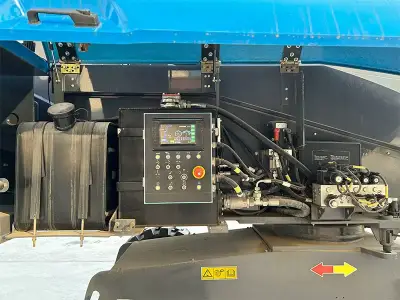

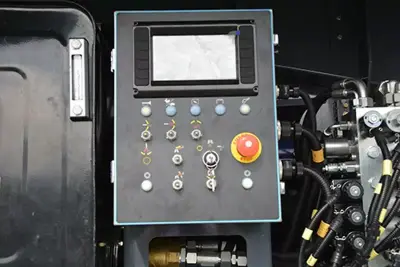

Bottom control
One person can operate easily running and lifting of the machine

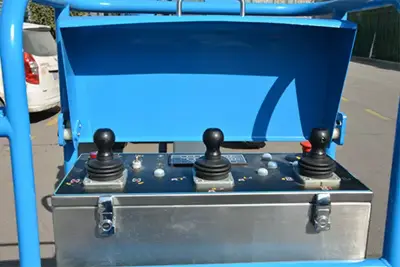

Upper control
One person can operate easily running and lifting of the machine
Fuel tank
Large-capacity fuel tank ensures long-term operation of the equipment

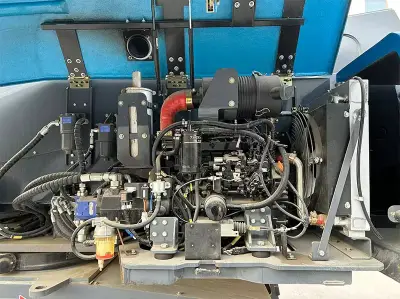

Hydraulic system
Use the world famous brand parts to provide the stability and safety of machine

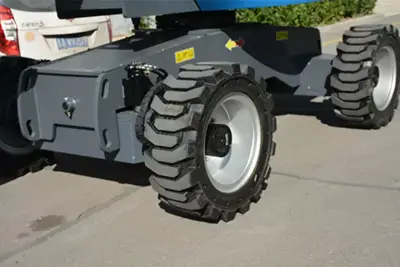

Tires
Large solid tire, excellent off-road performance

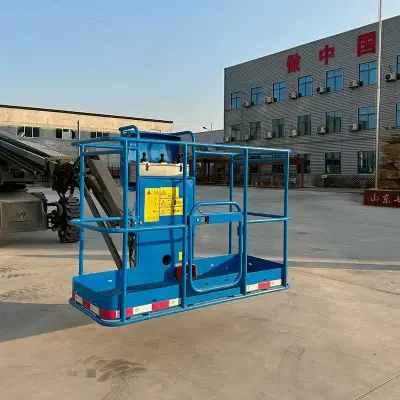

Working platform
80°rotation, wide working area; automatic leveling function

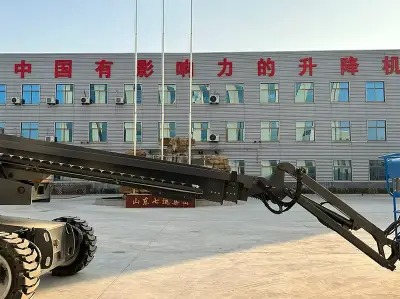

Retractable design
Security and stability

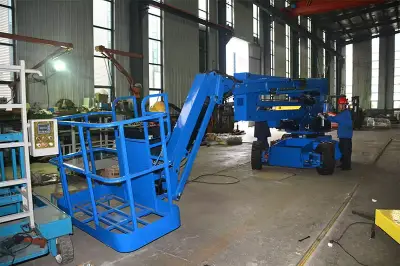

Production flow chart
Adopt intelligent and precise processing equipment to ensure the quality of the equipment
Finished product warehouse
After strict multi-layer inspection, the equipment enters the finished product warehouse for delivery preparation
| Model | TGZ08 | TGZ10 | TGZ12 | TGZ14 | TGZ16 | TGZ18 | TGZ20 |
| Max. Working Height | 10m | 12m | 14m | 16m | 18m | 20m | 22m |
| Max. Platform Height | 8m | 10m | 12m | 14m | 16m | 18m | 20m |
| Max. Loading Capacity | 200Kg | 200Kg | 200Kg | 200Kg | 200Kg | 200Kg | 200Kg |
| Max. Working Distance | 4.5m | 5.7m | 6.4m | 8.5m | 9.5m | 10.9m | 12.5m |
| Platform Size(L*W*H) | 1.2X0.8X1.1m | 1.2X0.8X1.1m | 1.2X0.8X1.1m | 1.2X0.8X1.1m | 1.2X0.8X1.1m | 1.2X0.8X1.1m | 1.2X0.8X1.1m |
| Transportation Size(L*W*H) | 5.2X1.585X1.9m | 5.4X1.665X1.9m | 6.4X1.665X1.9m | 6.0X1.73X2.1m | 7.0X2.73X2.2m | 7.1X1.85X2.26m | 7.7X1.85X2.26m |
| Outrigger span (Vertical*Horizontal) | 3.4X3.2m | 3.7X3.45m | 3.7X3.45m | 3.97X4.18m | 4.2X4.3m | 4.94X4.76m | 5.14X4.76m |
| Turntable Rotation Angle | 360 Degree | 360 Degree | 360 Degree | 360 Degree | 360 Degree | 360 Degree | 360 Degree |
| Platform Rotation Angle | 160 Degree | 160Degree | 160Degree | 160Degree | 160Degree | 160Degree | 160Degree |
| Tyre | 185/75R14C | 185/75R14C | 185/75R14C | 215/75R16C | 215/75R16C | 215/75R16C | 215/75R16C |
| Control | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
| Weight | 1538Kg | 1600Kg | 1800Kg | 2350Kg | 2900Kg | 4300Kg | 4450Kg |
| Diesel Powered | 10HP | 10HP | 10HP | 12HP | 12HP | 15HP | 15HP |
| DC pumping station | 24V/4.5KW(Optional Configuration) | 24V/4.5KW(Optional Configuration) | 24V/4.5KW(Optional Configuration) | 24V/4.5KW(Optional Configuration) | 24V/4.5KW(Optional Configuration) | 24V/4.5KW(Optional Configuration) | 24V/4.5KW(Optional Configuration) |
| Battery | 4X6V 180Ah(Optional Configuration) | 4X6V 180Ah(Optional Configuration) | 4X6V 180Ah(Optional Configuration) | 4X6V 180Ah(Optional Configuration) | 4X6V 180Ah(Optional Configuration) | 4X6V 210Ah(Optional Configuration) | 4X6V 210Ah(Optional Configuration) |
| AC | 380V/1.5KW or 220V/2.2KW | 380V/1.5KW or 220V/2.2KW | 380V/1.5KW or 220V/2.2KW | 380V/1.5KW or 220V/2.2KW | 380V/1.5KW or 220V/2.2KW | 380V/2.2KW or 220V/2.2KW | 380V/2.2KW or 220V/2.2KW |
PARAMETERS
PRODUCT DESCRIPTION
The trailer boom lift platform height is 8-20m .The working platform size is 1.2*0.8m, height is 1.1m and the loading capacity is 200kg. Power is AC,DC，diesel or both.The lift arm using a new type of high-quality steel, high strength, light weight, direct access to AC power to start, it can quickly set up safe and simple operation. The working table has large working radius and it can be 360 degrees rotated.
PRODUCT CUSTOMIZATION
We can customize products according to your requirements to make products more in line with your needs. Like color, brand, logo, nameplate, power(AC,DC,Diesel), voltage.
PRODUCT DETAILS
Obstacles can be overcome, fast erection, automatic hydraulic support feet;
The height of each foot can be adjusted according to the terrain to achieve level state of the platform;
Multi-point operation without moving;
The trailer type is easy to transport and can be towed directly and quickly;
It is widely used in installation, maintenance and climbing operations in municipal, electric power, street lights, advertising, docks and other industries,and is suitable for various rough terrains in the field.
Trailer boom lift(front)
Bottom control
Operate the booms of machine, it is convenient for one person to operate the machine during using
Upper control
Operate the booms of machine, it is convenient for one person to operate the machine during using
Hydraulic outriggers control handle
The outriggers can be opened or closed separately or simultaneously
Working platform
Good load capacity, and equip with guardrail to ensure the safety
Gradienter
Equip with a gradienter to ensure that the equipment is kept leveling during using to prevent rollover caused b tilting
Trailer hook
It is easy to transport and can be towed directly and quickly
Hydraulic oil tank: It can reserve hydraulic oil to ensure the normal operation of the equipment
Production flow chart
Adopt intelligent and precise processing equipment to ensure the quality of the equipment
Product packaging and delivery diagram
Equipment packaging in strict accordance with export standards
Finished product warehouse
After strict multi-layer inspection, the equipment enters the finished product warehouse for delivery preparation
