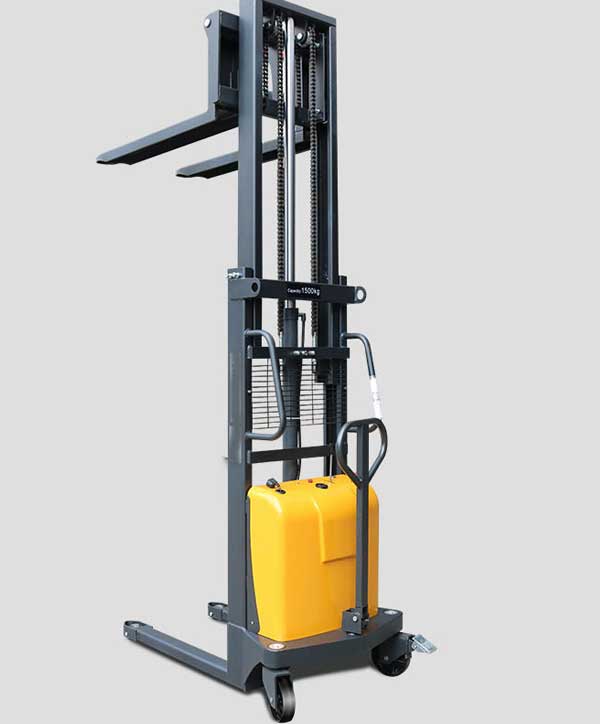

- Mast
The Mast is made of
high-quality C section
steel, which is thicker
than normal steel. - Hydraulic Cylinder
The hydraulic cylinder
i s h i g h s t r e n g t h
plunger-type cylinder
that is made by highprecision
automatic
welding. - Fork
T h e f o r k s m a d e
of thickened highstrength
structural
steel plate. - Power system
E q u i p s a 1 2 V- 8 5
Ah ma int enance –
free battery that can
g e n e r a l l y s a t i s f y
mo s t c u s t ome r s ’
daily requirements.
O p t i o n a l 1 2 0 A h
battery. - Power system
E q u i p s a 1 2 V- 8 5
Ah ma int enance –
free battery that can
g e n e r a l l y s a t i s f y
mo s t c u s t ome r s ’
daily requirements.
O p t i o n a l 1 2 0 A h
battery. - Safety Design
Foot brake design,
keep the vehicle from
moving when it is
operating.
Emergency brake
function: cut off all
p o w e r a n d b r a k e
immediately.
Metal grid protects
the operator to avoid
b e i n g i n j u r e d b y
accidentally falling
objects.
Click to add this item to cart.
Addtional Information
| Single Mast | ||||
| Model | unit | CTD-B1T | CTD-B1.5T | CTD-B2T |
| Max Load capacity | Kg | 1000 | 1500 | 2000 |
| Max lifting height | mm | 1600 | 1600 | 1600 |
| Max. load at Max. lifting height | Kg | 1000 | 1500 | 2000 |
| Min. height of fork | mm | 90 | 90 | 90 |
| Load center | mm | 550 | 550 | 550 |
| Turning radius | mm | 1275 | 1295 | 1295 |
| Lifting Power | Battery | Battery | Battery | |
| Travelling Power | Manual | Manual | Manual | |
| Mast Type | 2 stage mast | 2 stage mast | 2 stage mast | |
| Net Weight | Kg | 262 | 300 | 310 |
| Overall Length | mm | 1820 | 1840 | 1840 |
| Overall Width | mm | 780 | 780 | 780 |
| Overall Height,mast lowered | mm | 2060 | 2060 | 2060 |
| Overall Height,mast extended | mm | 2060 | 2060 | 2060 |
| Handle Height above ground | mm | 1160 | 1160 | 1160 |
| Handle Length | mm | 85 | 85 | 85 |
| Width of fork carriage | mm | 715 | 715 | 715 |
| Forks Type | mm | Adjustable | Adjustable | Adjustable |
| Fork Dimensions(L*W*H) | mm | 1150*150*60 | 1150*150*60 | 1150*150*60 |
| Forks Outside Width | mm | 320-680 | 320-680 | 320-680 |
| Leg Dimensions(L*W*H) | mm | 900*85*58 | 900*85*58 | 900*85*58 |
| Forks inside Width | mm | 430 | 430 | 400 |
| Min. height of leg above ground | mm | 80 | 80 | 80 |
| Fork Cover Leg above ground | mm | 90 | 90 | 90 |
| Min.ground clearance | mm | 22 | 22 | 22 |
| Wheel type | Nylon/PU | Nylon/PU | Nylon/PU | |
| Axle center to fork face | mm | 292 | 292 | 292 |
| Wheel base | mm | 1251 | 1251 | 1251 |
| Tread,drive | mm | 680 | 680 | 680 |
| Tread,load | mm | 550 | 550 | 520 |
| Wheels number drive/load | 2/2pcs | 2/2pcs | 2/2pcs | |
| Tyre size,drive | mm | φ180*50 | φ180*50 | φ180*50 |
| Tyre size,load | mm | Φ80×70 | Φ80×70 | Φ80×90 |
| Battery | V/Ah | 12/85 | 12/85 | 12/85 |
| Battery continues working time | h | 4 | 4 | 4 |
| Battery weight | Kg | 24 | 24 | 24 |
| Charger | Input 100-265Vac 50/60Hz output 12V/15A | |||
| Lifting motor | kw | 12V/1.6KW | 12V/1.6KW | 12V/1.6KW |
| Lifting speed ,with/without load | mm/time | 67/182 | 67/182 | 67/182 |
| Service brake | Mechanical | Mechanical | Mechanical | |
