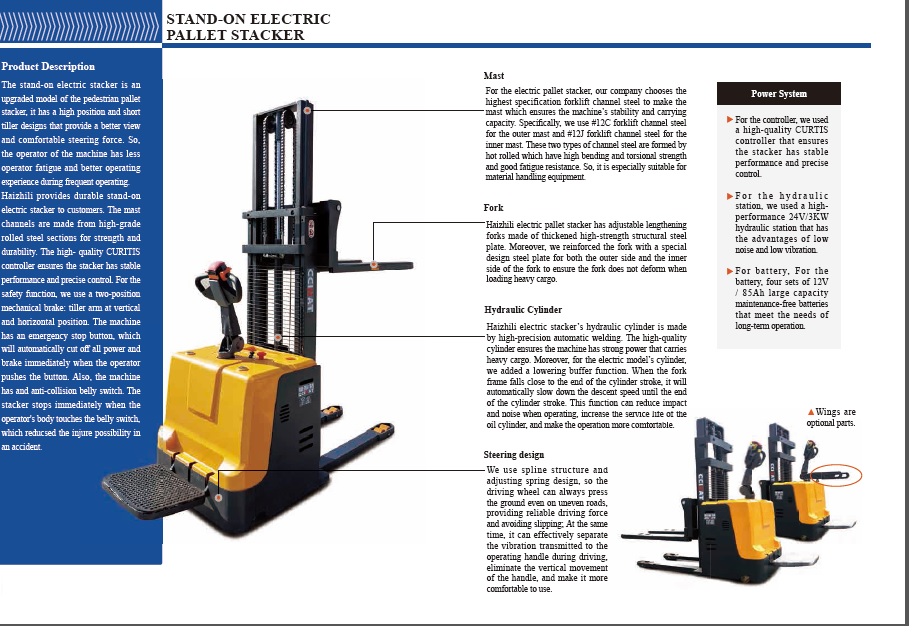

The stand-on electric stacker is an upgraded model of the pedestrian pallet stacker, it has a high position and short tiller designs that provide a better view and comfortable steering force. So, the operator of the machine has less operator fatigue and better operating experience during frequent operating. Haizhili provides durable stand-on electric stacker to customers. The mast channels are made from high-grade rolled steel sections for strength and durability. The high- quality CURITIS controller ensures the stacker has stable performance and precise control. For the safety function, we use a two-position mechanical brake: tiller arm at vertical and horizontal position. The machine has an emergency stop button, which will automatically cut off all power and brake immediately when the operator pushes the button. Also, the machine has and anti-collision belly switch. The stacker stops immediately when the operator’s body touches the belly switch, which reducsed the injure possibility in an accident.
| Mast For the electric pallet stacker, our company chooses the highest specification forklift channel steel to make the mast which ensures the machine’s stability and carrying capacity. Specifi cally, we use #12C forklift channel steel for the outer mast and #12J forklift channel steel for the inner mast. These two types of channel steel are formed by hot rolled which have high bending and torsional strength and good fatigue resistance. So, it is especially suitable for material handling equipment. |
Fork Haizhili electric pallet stacker has adjustable lengthening forks made of thickened high-strength structural steel plate. Moreover, we reinforced the fork with a special design steel plate for both the outer side and the inner side of the fork to ensure the fork does not deform when loading heavy cargo. |
| Hydraulic Cylinder Haizhili electric stacker’s hydraulic cylinder is made by high-precision automatic welding. The high-quality cylinder ensures the machine has strong power that carries heavy cargo. Moreover, for the electric model’s cylinder, we added a lowering buffer function. When the fork frame falls close to the end of the cylinder stroke, it will automatically slow down the descent speed until the end of the cylinder stroke. This function can reduce impact and noise when operating, increase the service life of the oil cylinder, and make the operation more comfortable. |
Steering design We use spline structure and adjusting spring design, so the driving wheel can always press the ground even on uneven roads, providing reliable driving force and avoiding slipping; At the same time, it can effectively separate the vibration transmitted to the operating handle during driving, eliminate the vertical movement of the handle, and make it more confortable to use |
Power System
- For the controller, we used a high-quality CURTIS controller that ensures the stacker has stable performance and precise control.
- For the hydraulic station, we used a highperformance 24V/3KW hydraulic station that has the advantages of low noise and low vibration.
- For battery, F o r t h e battery, four sets of 12V / 85Ah large capacity maintenance-free batteries that meet the needs of long-term operation.
Click to add this item to cart.
Addtional Information
| CTD2T | |||||
| Double Mast | |||||
| Model | unit | CTD-B2T-II(2000) | CTD-B2T-II(2500) | CTD-B2T-II(3000) | CTD-B2T-II(3500) |
| Max Load capacity | Kg | 2000 | 2000 | 2000 | 2000 |
| Max lifting height | mm | 2000 | 2500 | 3000 | 3500 |
| Max. load at Max. lifting height | Kg | 2000 | 1600 | 1440 | 1250 |
| Min. height of fork | mm | 90 | 90 | 90 | 90 |
| Load center | mm | 550 | 550 | 550 | 550 |
| Turning radius | mm | 1295 | 1295 | 1295 | 1295 |
| Lifting Power | Battery | Battery | Battery | Battery | |
| Travelling Power | Manual | Manual | Manual | Manual | |
| Mast Type | 2 stage mast | 2 stage mast | 2 stage mast | 2 stage mast | |
| Net Weight | Kg | 352 | 373 | 421 | 449 |
| Overall Length | mm | 1840 | 1840 | 1840 | 1840 |
| Overall Width | mm | 780 | 780 | 780 | 820 |
| Overall Height,mast lowered | mm | 1550 | 1800 | 2050 | 2300 |
| Overall Height,mast extended | mm | 2530 | 3030 | 3530 | 4030 |
| Mast Dimensions(W*H*T) | mm | ||||
| Handle Height above ground | mm | 1160 | 1160 | 1160 | 1160 |
| Handle Length | mm | 85 | 85 | 85 | 85 |
| Width of fork carriage | mm | 715 | 715 | 715 | 815 |
| Forks Type | mm | Adjustable | Adjustable | Adjustable | Adjustable |
| Fork Dimensions(L*W*H) | mm | 1150*150*60 | 1150*150*60 | 1150*150*60 | 1150*150*60 |
| Forks Outside Width | mm | 320-680 | 320-680 | 320-680 | 320-780 |
| Leg Dimensions(L*W*H) | mm | 900*85*58 | 900*85*58 | 900*85*58 | 900*85*58 |
| Forks inside Width | mm | 400 | 400 | 400 | 400 |
| Min. height of leg above ground | mm | 80 | 80 | 80 | 80 |
| Fork Cover Leg above ground | mm | 90 | 90 | 90 | 90 |
| Min.ground clearance | mm | 22 | 22 | 22 | 22 |
| Wheel type | Nylon/PU | Nylon/PU | Nylon/PU | Nylon/PU | |
| Axle center to fork face | mm | 292 | 292 | 292 | 292 |
| Wheel base | mm | 1251 | 1251 | 1251 | 1251 |
| Tread,drive | mm | 680 | 680 | 680 | 680 |
| Tread,load | mm | 520 | 520 | 520 | 620 |
| Wheels number drive/load | 2/2pcs | 2/2pcs | 2/2pcs | 2/2pcs | |
| Tyre size,drive | mm | φ180*50 | φ180*50 | φ180*50 | φ180*50 |
| Tyre size,load | mm | Φ80×90 | Φ80×90 | Φ80×90 | Φ80×90 |
| Battery | V/Ah | 12/85 | 12/85 | 12/85 | 12/85 |
| Battery continues working time | h | 4 | 4 | 4 | 4 |
| Battery weight | Kg | 24 | 24 | 24 | 24 |
| Charger | Input 100-265Vac 50/60Hz output 12V/15A | ||||
| Lifting motor | kw | 12V/1.6KW | 12V/1.6KW | 12V/1.6KW | 12V/1.6KW |
| Lifting speed ,with/without load | mm/time | 42/134 | 42/134 | 42/134 | 42/134 |
| Service brake | Mechanical | Mechanical | Mechanical | Mechanical | |
