Trailer Boom Lift
The trailer boom lift platform height is 8-20m .The working platform size is 1.2*0.8m, height is 1.1m and the loading capacity is 200kg. Power is AC,DC,diesel or both.The lift arm using a new type of high-quality steel, high strength, light weight, direct access to AC power to start, it can quickly set up safe and simple operation. The working table has large working radius and it can be 360 degrees rotated.
Addtional Information
Model | TGZ08 | TGZ10 | TGZ12 | TGZ14 | TGZ16 | TGZ18 | TGZ20 |
Max. Working Height | 10m | 12m | 14m | 16m | 18m | 20m | 22m |
Max. Platform Height | 8m | 10m | 12m | 14m | 16m | 18m | 20m |
Max. Loading Capacity | 200Kg | 200Kg | 200Kg | 200Kg | 200Kg | 200Kg | 200Kg |
Max. Working Distance | 4.5m | 5.7m | 6.4m | 8.5m | 9.5m | 10.9m | 12.5m |
Platform Size(L*W*H) | 1.2X0.8X1.1m | 1.2X0.8X1.1m | 1.2X0.8X1.1m | 1.2X0.8X1.1m | 1.2X0.8X1.1m | 1.2X0.8X1.1m | 1.2X0.8X1.1m |
Transportation Size(L*W*H) | 5.2X1.585X1.9m | 5.4X1.665X1.9m | 6.4X1.665X1.9m | 6.0X1.73X2.1m | 7.0X2.73X2.2m | 7.1X1.85X2.26m | 7.7X1.85X2.26m |
Outrigger span (Vertical*Horizontal) | 3.4X3.2m | 3.7X3.45m | 3.7X3.45m | 3.97X4.18m | 4.2X4.3m | 4.94X4.76m | 5.14X4.76m |
Turntable Rotation Angle | 360 Degree | 360 Degree | 360 Degree | 360 Degree | 360 Degree | 360 Degree | 360 Degree |
Platform Rotation Angle | 160 Degree | 160Degree | 160Degree | 160Degree | 160Degree | 160Degree | 160Degree |
Tyre | 185/75R14C | 185/75R14C | 185/75R14C | 215/75R16C | 215/75R16C | 215/75R16C | 215/75R16C |
Control | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
Weight | 1538Kg | 1600Kg | 1800Kg | 2350Kg | 2900Kg | 4300Kg | 4450Kg |
Diesel Powered | 10HP | 10HP | 10HP | 12HP | 12HP | 15HP | 15HP |
DC pumping station | 24V/4.5KW(Optional Configuration) | 24V/4.5KW(Optional Configuration) | 24V/4.5KW(Optional Configuration) | 24V/4.5KW(Optional Configuration) | 24V/4.5KW(Optional Configuration) | 24V/4.5KW(Optional Configuration) | 24V/4.5KW(Optional Configuration) |
Battery | 4X6V 180Ah(Optional Configuration) | 4X6V 180Ah(Optional Configuration) | 4X6V 180Ah(Optional Configuration) | 4X6V 180Ah(Optional Configuration) | 4X6V 180Ah(Optional Configuration) | 4X6V 210Ah(Optional Configuration) | 4X6V 210Ah(Optional Configuration) |
AC | 380V/1.5KW or 220V/2.2KW | 380V/1.5KW or 220V/2.2KW | 380V/1.5KW or 220V/2.2KW | 380V/1.5KW or 220V/2.2KW | 380V/1.5KW or 220V/2.2KW | 380V/2.2KW or 220V/2.2KW | 380V/2.2KW or 220V/2.2KW |
PRODUCT DESCRIPTION
The trailer boom lift platform height is 8-20m .The working platform size is 1.2*0.8m, height is 1.1m and the loading capacity is 200kg. Power is AC,DC,diesel or both.The lift arm using a new type of high-quality steel, high strength, light weight, direct access to AC power to start, it can quickly set up safe and simple operation. The working table has large working radius and it can be 360 degrees rotated.
PRODUCT CUSTOMIZATION
We can customize products according to your requirements to make products more in line with your needs. Like color, brand, logo, nameplate, power(AC,DC,Diesel), voltage.
PRODUCT DETAILS
Obstacles can be overcome, fast erection, automatic hydraulic support feet;
The height of each foot can be adjusted according to the terrain to achieve level state of the platform;
Multi-point operation without moving;
The trailer type is easy to transport and can be towed directly and quickly;
It is widely used in installation, maintenance and climbing operations in municipal, electric power, street lights, advertising, docks and other industries,and is suitable for various rough terrains in the field.

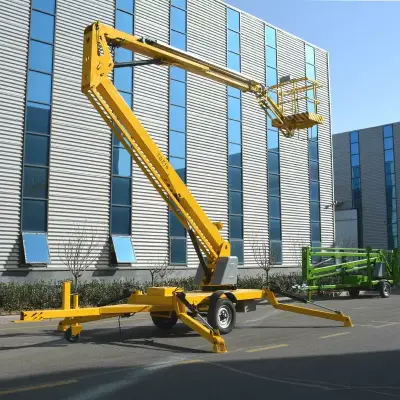

Trailer boom lift(front)

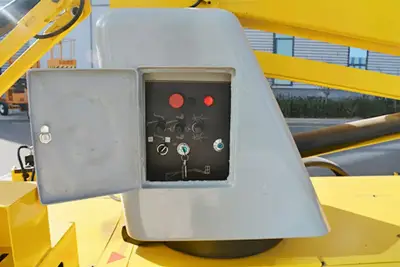

Bottom control
Operate the booms of machine, it is convenient for one person to operate the machine during using

Upper control
Operate the booms of machine, it is convenient for one person to operate the machine during using

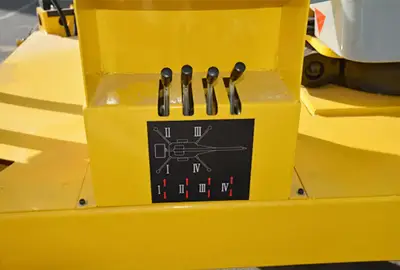

Hydraulic outriggers control handle
The outriggers can be opened or closed separately or simultaneously

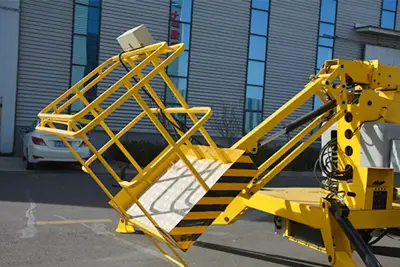

Working platform
Good load capacity, and equip with guardrail to ensure the safety

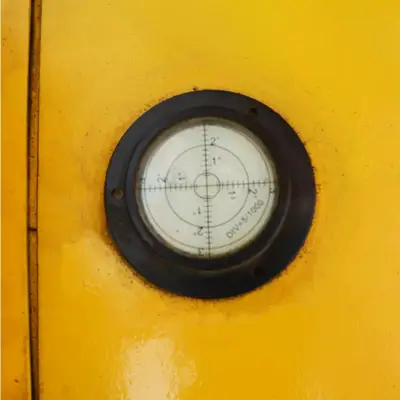

Gradienter
Equip with a gradienter to ensure that the equipment is kept leveling during using to prevent rollover caused b tilting

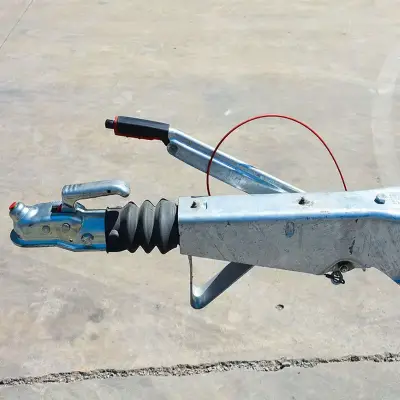

Trailer hook
It is easy to transport and can be towed directly and quickly
Hydraulic oil tank: It can reserve hydraulic oil to ensure the normal operation of the equipment

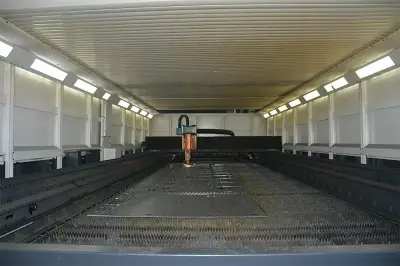

Production flow chart
Adopt intelligent and precise processing equipment to ensure the quality of the equipment

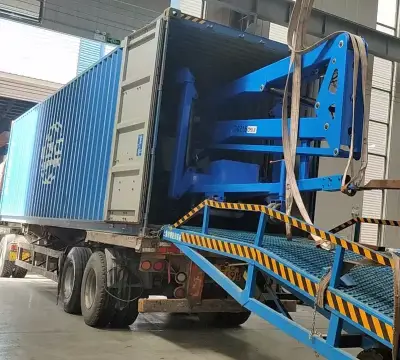

Product packaging and delivery diagram
Equipment packaging in strict accordance with export standards

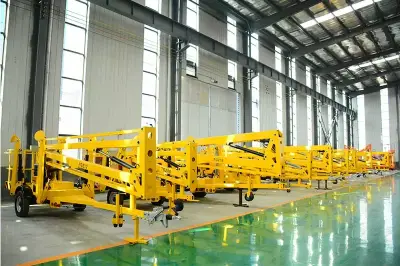

Finished product warehouse
After strict multi-layer inspection, the equipment enters the finished product warehouse for delivery preparation
